ONBOARD COMPUTER

Advanced Digital Features

Serving as the central hub, it provides comprehensive monitoring of charge levels, RPM, and system usage, while also supporting speed tracking, navigation, and future autonomous features.

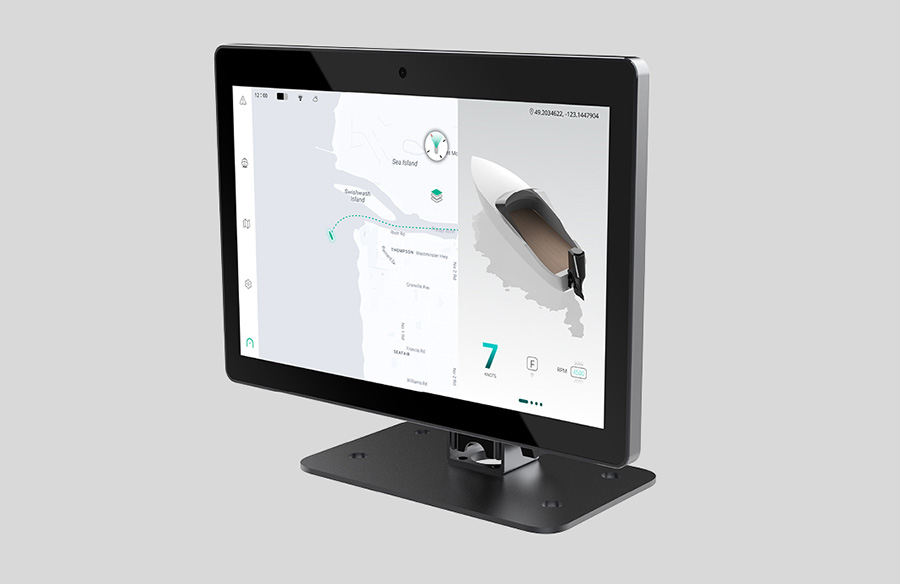

Onboard Computer

Enhances the boating experience

The 10-inch display, available in various sizes, offers excellent visibility even in direct sunlight, with mounting options for flush, tilt, and swivel. Over-the-air updates, connectivity options like Wi-Fi, LTE, and Bluetooth ensure a connected and customizable experience. The system can also function as a Wi-Fi hotspot and lays the groundwork for future autonomous and IoT integration.

Dive Into The Details

Onboard Computer Specifications

Display

10.1’’-10.5’’ ( 25.65 cm to 26.67 cm) Touch Screen, 1920×1080 pixels, WVGA Color/IPS

Waterproof

IP67

Mounting Options

Flush, Tilt/Swivel

Connections

All-in-one cable (CAN, 3.5mm Aux) / Wi-Fi

Power Input

12.3 Vdc

Typical Current Draw

0.75 A

Max Current Draw

1.5 A

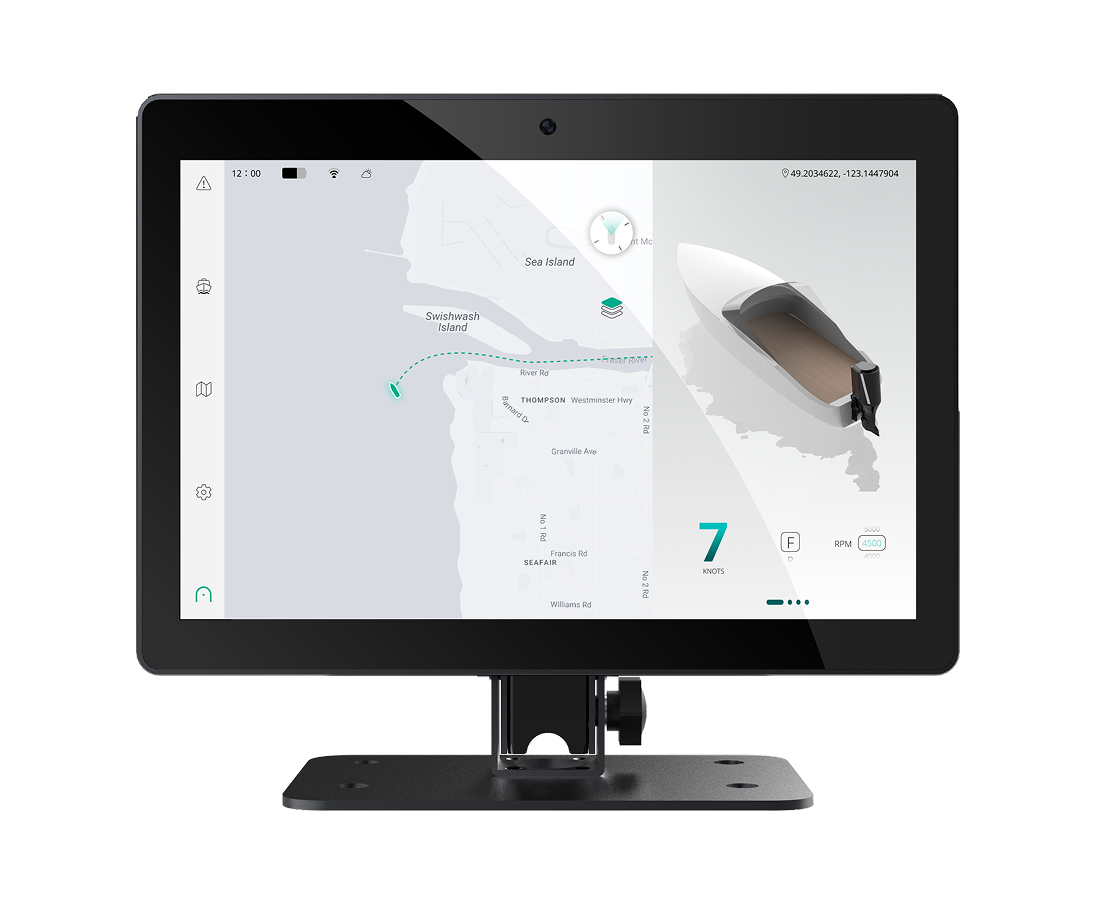

High-Visibility Display

A 10-inch immersive screen (with optional sizes) offers exceptional color accuracy, wide viewing angles, and full visibility even under direct sunlight.

Seamless Connectivity

Stay connected with Wi-Fi, LTE, and Bluetooth, and transform your system into a Wi-Fi hotspot for multiple devices.

Real-Time System Monitoring

Track charge levels, RPM, and system usage, ensuring a smooth and optimized boating experience.

Secure User & Driver Profiles

A future with personalized logins with secure access, allowing for tailored settings and a customized user experience.

Over-The-Air (OTA) Updates

Receive continuous software improvements and feature enhancements without any hassle.

Advanced Navigation & Security

Integrated speed tracking, navigation assistance, and a foundation for IoT connectivity with future autonomous capabilities.

Comprehensive Intelligent Propulsion System

SMART CHARGER

Battery Pack + BMS

OUTBOARD MOTOR

ONBOARD COMPUTER

DIGITAL THROTTLE

SMART KEY

intelligent power SUPPLY

Essential Product Package

Outboard Series

Intelligent, Sleek And Modern

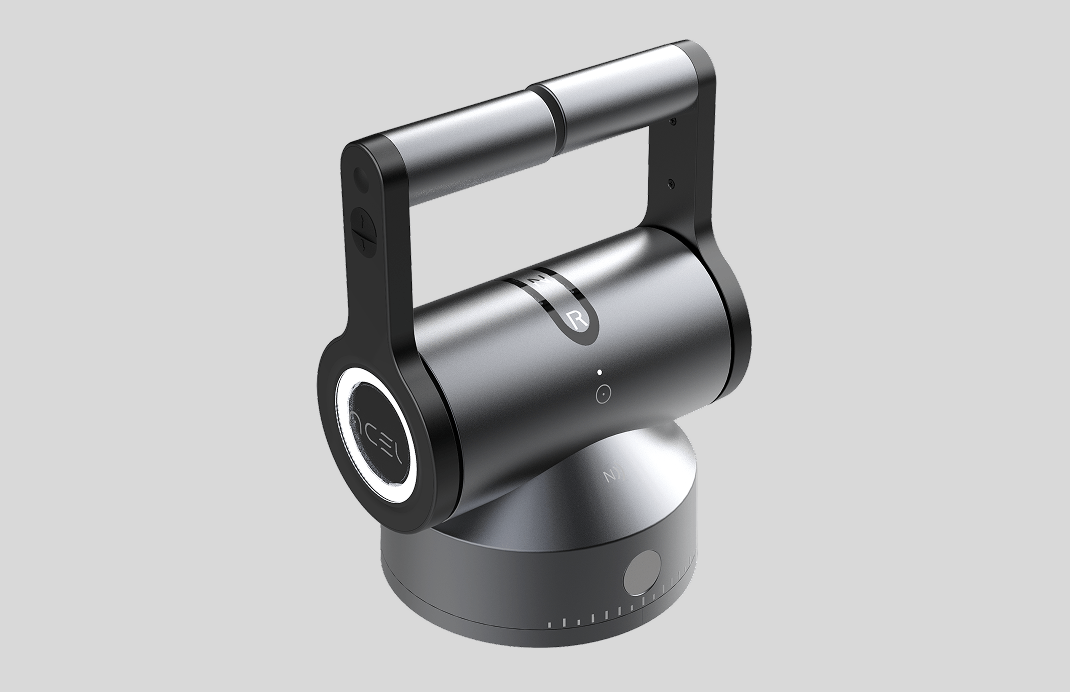

Digital Throttle

Intuitive Control Meets Unmatched Safety

Lithium-Ion Battery

Versatile, Scalable And
Effortlessly Reliable

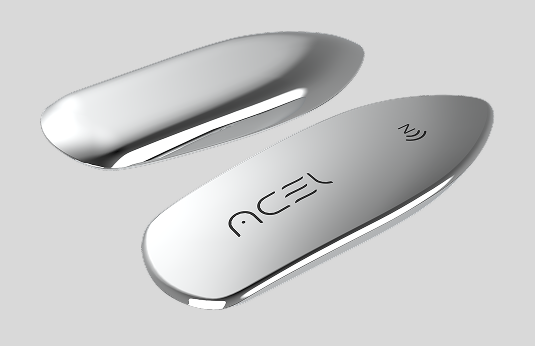

Smart Key

Long Range Wireless/NFC Enabled

Smart Charger

IP 67 Portable
Charging System

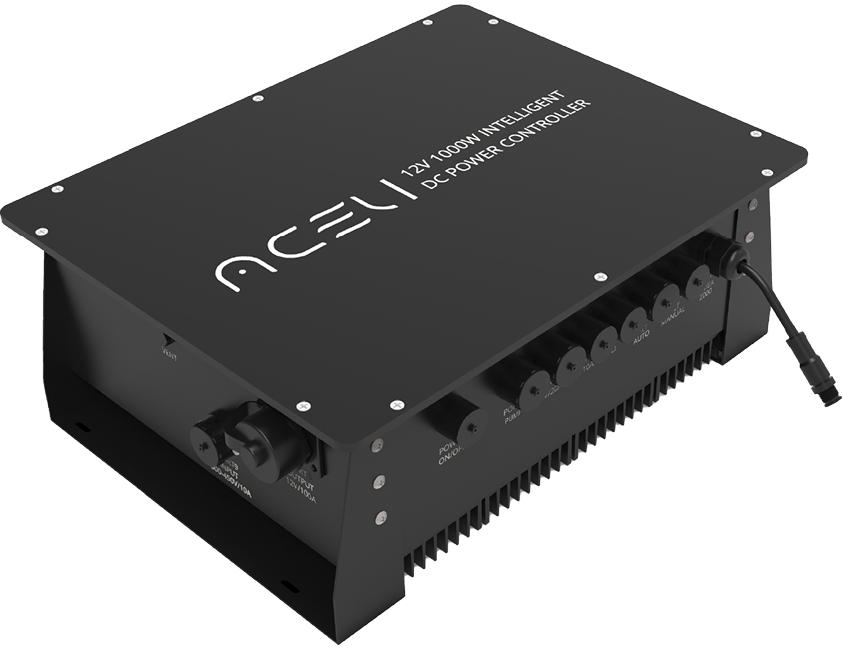

Intelligent Power
Supply

Centralized Power Distribution Hub

Partner With Us

Serving Boat Builders, Dealerships, and Commercial Operators.

Frequently Asked Question

The Onboard Computer serves as the central controller or “brain” of electric propulsion systems, managing key operations for outboard motors and vessel control. The screen provides an intuitive interface for monitoring system status, navigation, and real-time performance data.

The unit communicates via a 5-core NMEA2000 cable connected to the CAN bus at 250 Kbps and supports wireless two-way communication via 4G and dual-band Wi-Fi (2.4G / 5.8G).

It operates reliably between -10°C to 45°C and can be safely stored between -20°C and 60°C.

The touchscreen interface provides real-time data such as charge levels, RPM, speed, navigation assistance, system alerts, and future support for autonomous features.

Yes, the Onboard Computer is IP67-rated for water resistance and built with a rugged, UV-resistant, fireproof shell—ideal for harsh marine environments.The 10.1″-10.5″ capacitive touchscreen with a bright 600–650 LUX display, ensures clear visibility and responsive control even in direct sunlight or wet conditions.
